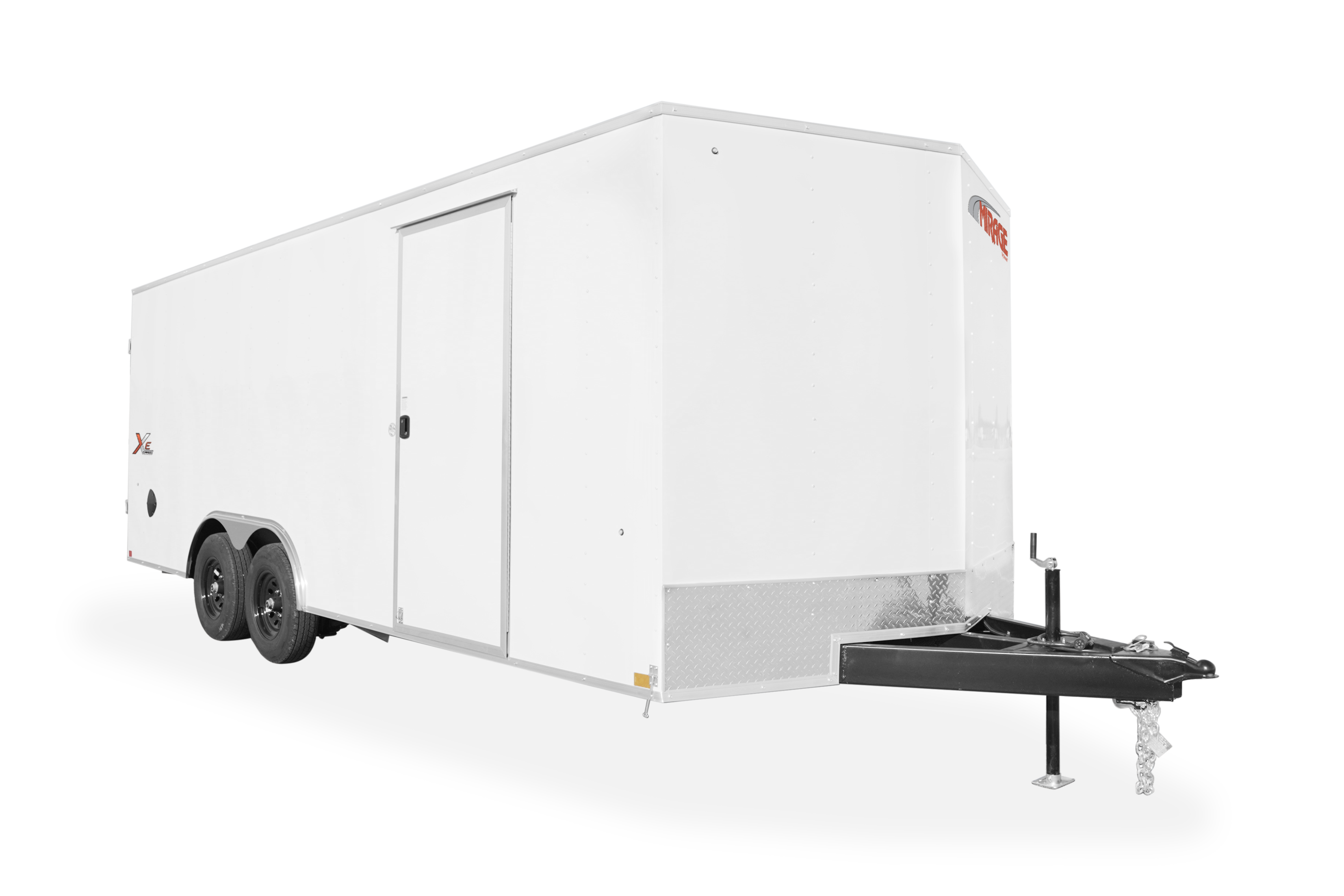

XE Car Hauler

What you'll get:

  • Flat top, Shallow V-Nose Design
  • Single Piece Aluminum Roof
  • Polyurea Textured Coating
  • Asphalt Undercoat
  • Triple Tube Tongue

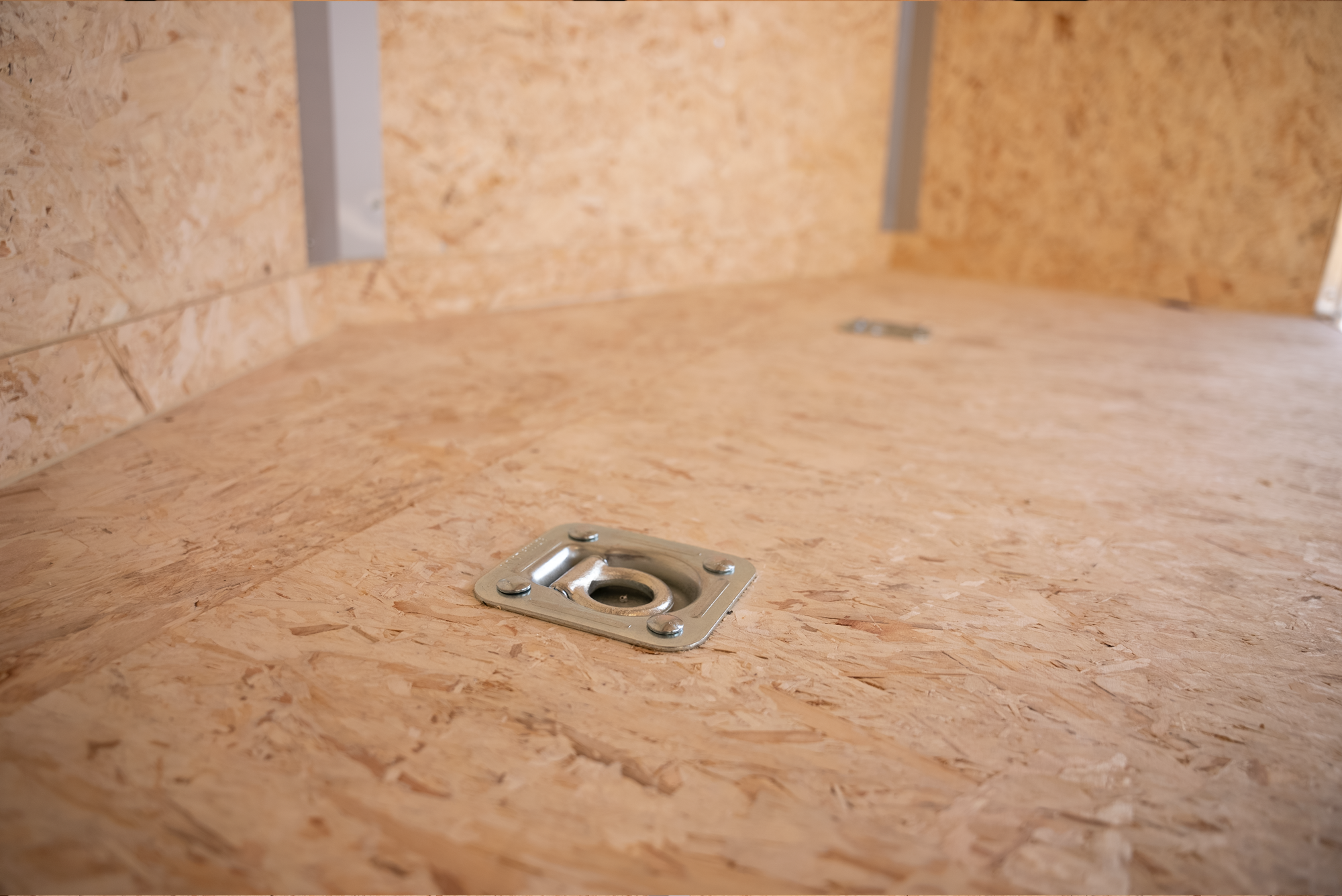

  • Heavy Duty, Recessed D-Rings
Request a Quote Locate a Dealer

Flat Roof, V-Nose XE Car Haulers are the perfect mix of quality and value.Models are available in both 7K and 10K gross weight ratings between 8.5×16 and 8.5×24 sizes.Key standard features include a Seamless Aluminum Roof, .030 Aluminum Exterior Metal, Triple Tube Tongue, Recessed D-rings, and a 36" Wide Entry Door.Polyurea Textured Coatings are added to all exposed metal surfaces, including tongue rails, interior door frames, and fender boxes.We finish the trailer with our standard Asphalt Undercoat to fully protect each trailer from corrosion and exposure.

CAR HAULER

Frame
Coupler 2 5/16" A-Frame
Jack 2K Top Wind w/ Adj Jack Foot
Tongue 6 x 2" Triple Tube
Frame 6 x 2" Tube
Crossmembers 16" o/c
Floor 3/4" Engineered Wood
Wall Studs 24" o/c Tube
Side Walls 3/8" Engineered Wood
V Nose Yes

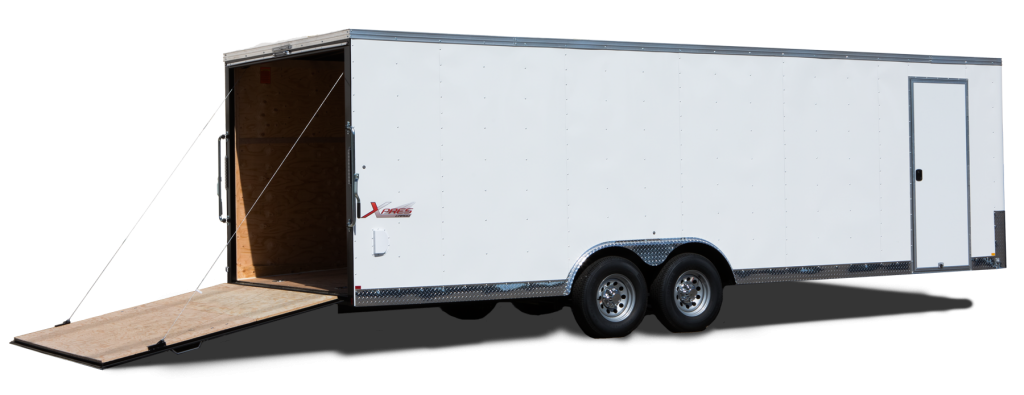

Rear Doors Rear Ramp
Entry Door 36" Prehung
Interior
Ceiling Liner Optional
Roof
Roof One Piece Aluminum
Roof Bows 24" o/c Tube
Roof Cap n/a
Roof Cove 1 1/2" Extruded Aluminum Top Trim
Exterior
Stoneguard 24" ATP
Vents Sidewall
Exterior Trim 1 1/2" Extruded Aluminum Bottom Trim
Wheels & Suspension
Axles Multi-Leaf Spring Brake
Wheels and Tires Radial Tires on Silver Mod Wheels
Fenders ATP Teardrop Flare
Fender Boxes Depends on Axle
Electrical
Wiring 7-Way w/ Jct.Box, Breakaway

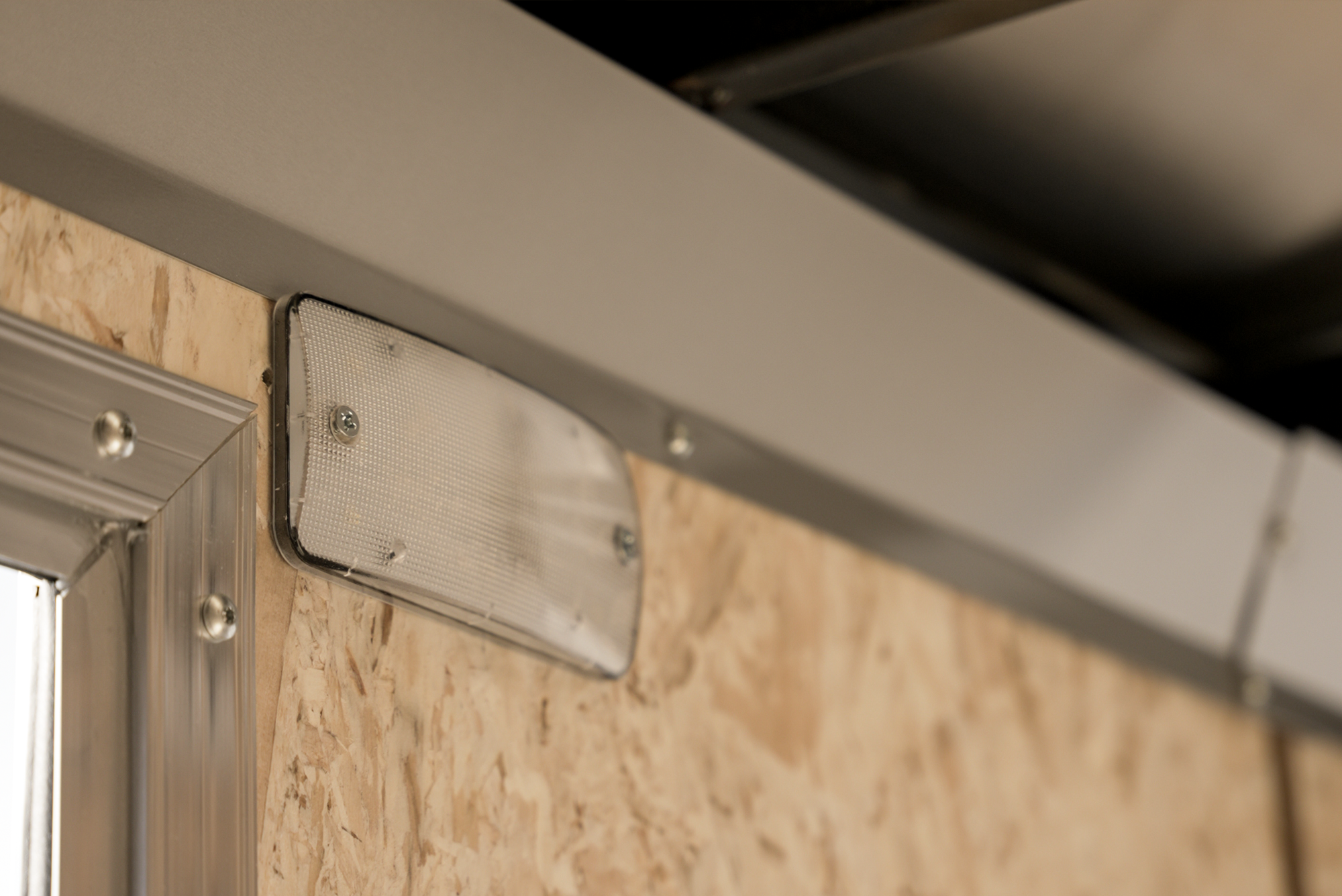

Interior Lights (2) LED Dome w/ Wall Switch
Exterior Lights All LED

8.5 x 16 XE Flat Top V-Nose Enclosed Car Hauler 10K

DESCRIPTION 8.5 x 16 XE Flat Top V-Nose Enclosed Car Hauler 10K
SIZE 8.5x16
GVWR 9900
OPEN W 93
OPEN H 77
DRY WGT 2375
PAYLOAD 7525
HITCH WGT 237.5
TOT W 101.75
TOT H 99
TOT L 240
INT H 78
STUD H 84.75
INT L 208
INT W 96
HITCH WGT 237.5
HITCH H 20
FLOOR H 22
BOX WIDTH 100
BOX LENGTH 192

8.5 x 18 XE Flat Top V-Nose Enclosed Car Hauler 10K

DESCRIPTION 8.5 x 18 XE Flat Top V-Nose Enclosed Car Hauler 10K
SIZE 8.5x18
GVWR 9900
OPEN W 93
OPEN H 77
DRY WGT 2525
PAYLOAD 7375
HITCH WGT 252.5
TOT W 101.75
TOT H 99
TOT L 264
INT H 78
STUD H 84.75
INT L 232
INT W 96
HITCH WGT 252.5
HITCH H 20
FLOOR H 22
BOX WIDTH 100
BOX LENGTH 216

8.5 x 20 XE Flat Top V-Nose Enclosed Car Hauler 10K

DESCRIPTION 8.5 x 20 XE Flat Top V-Nose Enclosed Car Hauler 10K
SIZE 8.5x20
GVWR 9900
OPEN W 93
OPEN H 77
DRY WGT 3295
PAYLOAD 6605
HITCH WGT 329.5
TOT W 101.75
TOT H 99
TOT L 288
INT H 78
STUD H 84.75
INT L 256
INT W 96
HITCH WGT 329.5
HITCH H 20
FLOOR H 22
BOX WIDTH 100
BOX LENGTH 240

8.5 x 22 XE Flat Top V-Nose Enclosed Car Hauler 10K

DESCRIPTION 8.5 x 22 XE Flat Top V-Nose Enclosed Car Hauler 10K
SIZE 8.5x22
GVWR 9900
OPEN W 93
OPEN H 77
DRY WGT 2675
PAYLOAD 7225
HITCH WGT 267.5
TOT W 101.75
TOT H 99
TOT L 312
INT H 78
STUD H 84.75
INT L 280
INT W 96
HITCH WGT 267.5
HITCH H 20
FLOOR H 22
BOX WIDTH 100
BOX LENGTH 264

8.5 x 24 XE Flat Top V-Nose Enclosed Car Hauler 10K

DESCRIPTION 8.5 x 24 XE Flat Top V-Nose Enclosed Car Hauler 10K
SIZE 8.5x24
GVWR 9900
OPEN W 93
OPEN H 77
DRY WGT 3640
PAYLOAD 6260
HITCH WGT 364
TOT W 101.75
TOT H 99
TOT L 336
INT H 78
STUD H 84.75
INT L 304
INT W 96
HITCH WGT 364
HITCH H 20
FLOOR H 22
BOX WIDTH 100
BOX LENGTH 288

8.5 x 16 XE Flat Top V-Nose Enclosed Car Hauler 7K

DESCRIPTION 8.5 x 16 XE Flat Top V-Nose Enclosed Car Hauler 7K
SIZE 8.5x16
GVWR 7000
OPEN W 93
OPEN H 77
DRY WGT 2270
PAYLOAD 4730
HITCH WGT 227
TOT W 101.75
TOT H 99
TOT L 240
INT H 78
STUD H 84.75
INT L 208
INT W 96
HITCH WGT 227
HITCH H 20
FLOOR H 22
BOX WIDTH 100
BOX LENGTH 192

8.5 x 18 XE Flat Top V-Nose Enclosed Car Hauler 7K

DESCRIPTION 8.5 x 18 XE Flat Top V-Nose Enclosed Car Hauler 7K
SIZE 8.5x18
GVWR 7000
OPEN W 93
OPEN H 77
DRY WGT 2885
PAYLOAD 4115
HITCH WGT 288.5
TOT W 101.75
TOT H 99
TOT L 264
INT H 78
STUD H 84.75
INT L 232
INT W 96
HITCH WGT 288.5
HITCH H 20
FLOOR H 22
BOX WIDTH 100
BOX LENGTH 216

8.5 x 20 XE Flat Top V-Nose Enclosed Car Hauler 7K

DESCRIPTION 8.5 x 20 XE Flat Top V-Nose Enclosed Car Hauler 7K
SIZE 8.5x20
GVWR 7000
OPEN W 93
OPEN H 77
DRY WGT 3200
PAYLOAD 3800
HITCH WGT 320
TOT W 101.75
TOT H 99
TOT L 288
INT H 78
STUD H 84.75
INT L 256
INT W 96
HITCH WGT 320
HITCH H 20
FLOOR H 22
BOX WIDTH 100
BOX LENGTH 240
Penske Yellow
Victory Red
Champagne Beige
Forest Green
Schneider Orange
Charcoal Metallic
Silver
Indigo Blue
Dove Grey
Brandy Wine
White
Black

*Disclaimer: Colors shown are approximate.Actual colors will vary slightly from what is shown.
